RHEDA 2000®: PROVEN TECHNOLOGY FOR HIGH-SPEED RAIL
RHEDA 2000® represents decades of experience in the development and implementation of high-performance ballastless track systems. This technology combines a high level of safety and ride comfort with cost-effective operation throughout the entire life cycle and is firmly established on high-speed rail lines worldwide. For maximum flexibility, RHEDA 2000® is available for both track and turnout applications.
HÖCHSTER FAHRKOMFORT FÜR HÖCHSTE GESCHWINDIGKEITEN
RHEDA 2000® ist die letzte Entwicklungsstufe eines seit 1972 global erfolgreich eingesetzten und kontinuierlich weiterentwickelten Feste Fahrbahnsystems. Es verbindet höchste Sicherheit und Fahrkomfort mit maximaler Wirtschaftlichkeit über den gesamten Lebenszyklus einer Hochgeschwindigkeitsstrecke. Deshalb ist RHEDA 2000® heute eines der am weitesten verbreiteten Festen Fahrbahnsysteme und wird von allen wesentlichen Hochgeschwindigkeitszügen wie TGV/Thalys, ICE, Talgo und Shinkansen genutzt.
Das Feste Fahrbahnsystem RHEDA 2000® ist sowohl für Gleise als auch für Weichen verfügbar.
RHEDA 2000® WITHOUT CONTINUOUS REINFORCEMENT
The Next Technological Step: Ballastless Track Without Continuous Reinforcement
The Next Technological Step: Ballastless Track Without Continuous Reinforcement
The new ballastless track system without continuous reinforcement represents another advanced system solution.
Its design and operating principle reflect the latest state of the art in track construction. Unlike the previous RHEDA 2000® system, however, it does not require continuous reinforcement.
Eliminating the reinforcement offers several advantages: shorter construction times, lower costs and reduced impact on signalling systems and grounding.
This makes the system particularly suitable for regions such as France, Spain and Asia, where the UM71 track circuit system is used.
Maximum cost-effectiveness and reliability through the use of concrete sleepers as high-quality precast concrete components in the critical rail support area
Highly precise track geometry through the use of precast concrete sleepers
High adaptability to all types and designs of substructure through the use of cast-in-place concrete for the track slab
High reliability thanks to advanced track slab concrete technology suitable for a wide range of climatic conditions and concrete standards
Flexible, high-performance installation technology based on simple, reproducible installation steps that can be performed either manually or automatically
High local added value through local manufacturing opportunities
Application | High-speed and conventional lines |

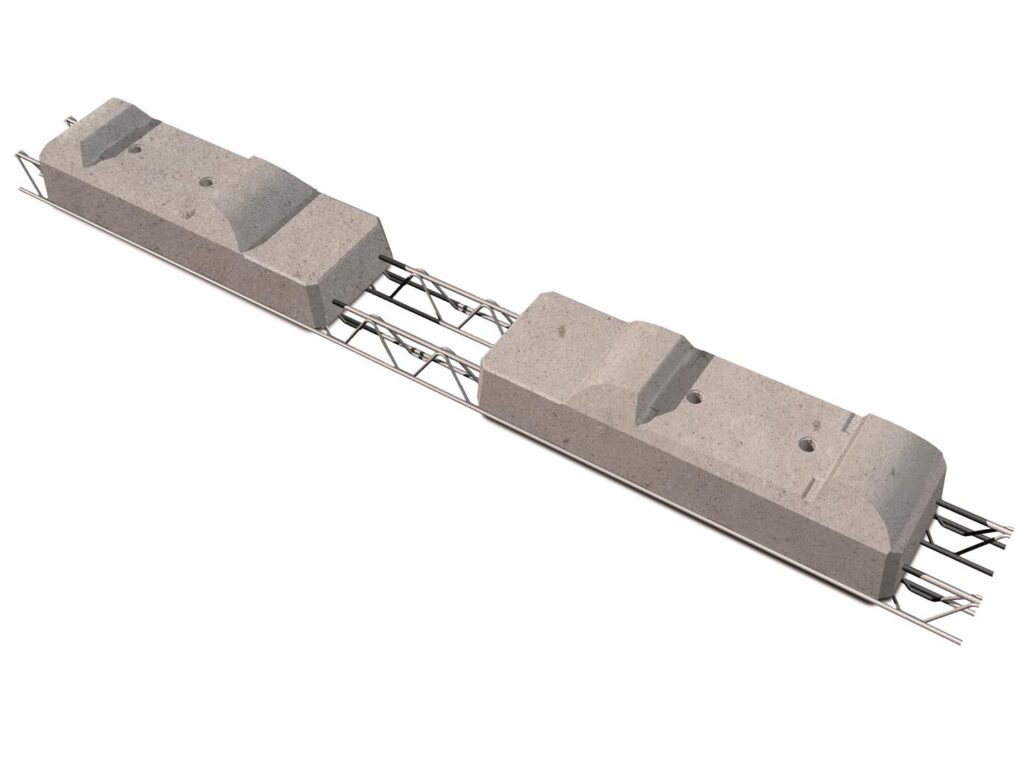

System type | RHEDA family with B 355 bi-block sleepers embedded in cast-in-place concrete |
Maximum speed | > 350 km/h |
Axle load | 25 t (*) |
Track gauge | 1.435 mm |
System width | 2.800 mm |
System height (on dam) | 800 mm |
Approvals | Deutsche Bahn, Network Rail, PKP PLK and project-specific approvals |
